HBTS80 concrete trailer pump, as a large-sized concrete pumping machine model of LUTON GROUP, is designed especially for large construction projects, such as railway projects, hydropower engineering, mining projects as well as high-rise building construction, etc.
For more than 30 years, LUTON GROUP has always adhered to the actual needs of customers as the development core. We constantly optimized the designs, an developed products with simple and compact structures, high stability, strong pumping capacity and higher cost performance, providing more economical and practical pumping products for the global construction fields.
Powerful Driving System
Smooth Hydraulic Transmission
Simple Design & Easy Maintenance
Long Lifespan & After-sale Service
Main Parameters Of HBTS80 Concrete Pump
Diesel Model of HBTS80
Diesel concrete pump HBTS80 is featured as stable and strong drive energy. It is especially suitable for those remote areas without stable electric supply.
| Model | HBTS80-16-176R |
| Max. Theo. Concrete Output | 80 m3/h |
| Max.Concrete Pumping Pressure | 16 Mpa |
| Distribution Valve Type | S Valve |
| Concrete Cylinder Diameter×Stroke | Ф200×1800 mm |
| Outlet Diameter | Ф180 mm |
| Diesel Engine | Weichai Deutz 176kW 2200r/min |
| Max. Pumping Distance (vertical/level) | 360/1200 |
| Max. Aggregate Diameter | 40 mm |

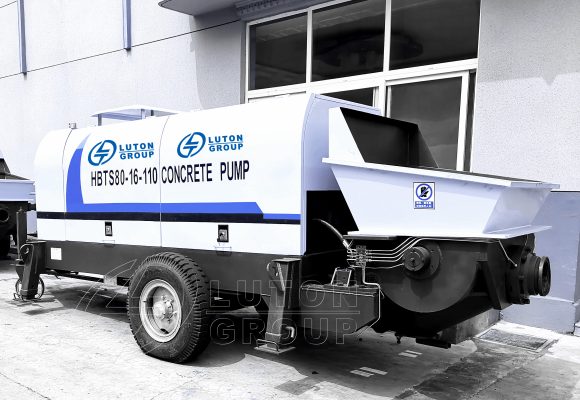

Electric Model HBTS80 Concrete Trailer Pump
Thanks for the compact structure, standard components and easy maintenance, electric concrete pump HBTS80 is also widely used in many kind of construction projects, such as high-rise building construction, expressway projects, residential house projects, hydropower facilities construction, etc.
| Model | HBTS80-16-110 |
| Max. Theoretical Throughput | 88 m3/h |
| Max. Pumping Pressure | 16 MPa |
| Power of Main Electric Motor | 110 kW |
| Max. Conveying Distance (vertical/horizontal) | 300m/1200m |
| Max. Aggregate Diameter | 40 mm |
| Concrete Cylinder Diameter×Stroke | Φ200/1800 |
| Hydraulic Oil Tank Capacity | 800L |
Reliable LUTON Quality
30+
Over 30-year experience of producing and exporting ensures high product quality.
150+
Products have been exported to over 150 countries, and won a good reputation.
7*24
Professional engineer team makes sure a 7 days*24 hours service for global customers.
Description Of HBTS80 Concrete Pump Trailer
Compared with the large-sized equipment in the construction industry, HBTS80 concrete trailer pump is a relatively smaller machine. Although the structure is small, it contains great energy. For Such a kind of equipment, how can the concrete raw materials be delivered at the speed of 80m³per hour to meet the needs of various engineering construction? There is an old Chinese saying, “ Small as a sparrow, but it perfectly formed.” This is original from its exquisite interior design and configuration.
Exquisite Hydraulic System
The double open-loop hydraulic pumps ensure the whole hydraulic system simple in structure and stable in performance.
Main oil pump is the famous model from KAWASAKI, reliable and stable.
Stable Double Gear Pumps
The double gear pumps are used separately for cooling system and driving mixing shaft in mixing hopper.
Precise Electric Control System
Full-automatic PLC control system monitors the whole machine with multiple functions and easy operation.
Cooperating with proximity switches in hydraulic cylinder, the electric control system can realize direction change with non-touch and reliable execution.
The wireless remote equipment makes long-distance operation easy and convenient.
The main electric parts are all from the global brand, Schneider.
The PLC controller is from Omron.
Reliable Diesel Engine
176kW diesel engine from top-level brand of China, as the original power resource ensures the stable and powerful diesel energy supply of the whole machine.
Durable Actuating Element
The glass plate, made of hard material alloy, can do 30,000-50,000 cubic meters of work.
The circular hopper design make unloading easier and more thoroughly, made of high carbon manganese steel, durable and wear-resistant.
S valve is designed by I-DEAS software, with great rigidity to avoid the phenomenon of distortion and breakage.
