15m Concrete Placing Boom In Vietnam

15m concrete placing boom in Vietnam as a reliable solution for high-rise construction project. The scheme is from LUTON expert team, for an urgent inquiry of a client from Vietnam.

Project Background

Vietnam has experienced rapid urbanization over the past decade, especially in major cities such as Ho Chi Minh, Hanoi, and Da Nang. With the continuous growth of commercial complexes, residential towers, and mixed-use high-rise buildings, the demand for efficient and stable concrete placing equipment has increased significantly.

This project is a large-scale high-rise building construction in Vietnam, where concrete pouring efficiency, placement accuracy, and on-site safety were critical requirements. To meet these demands, a 15m concrete placing boom was selected and successfully put into operation on site.

Get A Free Quote >>

Challenges of Concrete Placement in the Vietnamese Market

Concrete construction in Vietnam presents several practical challenges that contractors must address:

High temperature and humidity, which accelerate concrete setting time
Limited jobsite space in dense urban areas
Tight construction schedules for high-rise projects
Dependence on truck-mounted or stationary concrete pumps requiring flexible distribution

Traditional manual placement or long rubber hoses often lead to low efficiency, uneven concrete distribution, and increased labor costs. Therefore, contractors increasingly prefer independent concrete placing booms as a reliable and cost-effective solution.

Why A 15m Concrete Placing Boom

For this Vietnamese high-rise project, the contractor selected a 15m concrete placing boom due to its optimal balance between coverage, mobility, and cost.

Key Reasons for Selection:

15m working radius perfectly covers standard high-rise floor slabs

Compatible with stationary concrete pumps already available on site

Compact strucure suitable for narrow construction areas

Faster setup compared with tower-mounted systems

Lower investment cost than truck-mounted pump booms

This configuration allows concrete to be delivered smoothly from the pump to every pouring point on each floor without frequent repositioning.

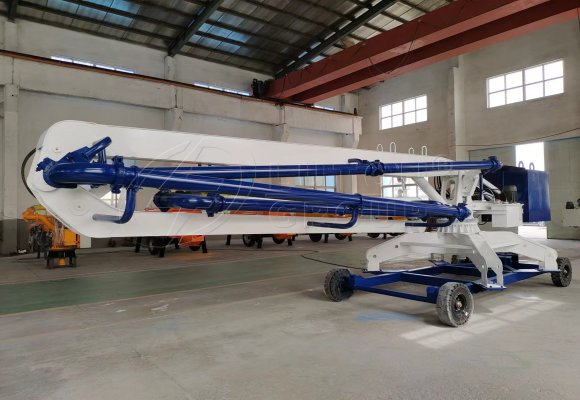

Equipment Configuration & Technical Highlights

The 15m concrete placing boom used in this project is designed specifically for medium to large construction sites in Southeast Asia.

Main technical features includes:

Full-hydraulic control system for smooth and precise operation
3-section boom structure with flexbile rotation
High-strength steel pipeline with wear-resistant inner wall
360° slewing range for wide converage
Stable base structure ensuring safety during continuous operation

These features make the placing boom highly adaptable to Vietnam’s construction environment, where reliability and easy maintenance are essential.

Model	HGY15
Boom Length	15m
Rotating Angle	360°
Pitch Angle	0 ~ 90°
Rotating Brake	Normally closed
Working Temperature	-5℃ ~ 40℃
Net Weight	3 T
With Counterweight	5.2 T
Outtrigger Span	4000×4000
Power Support	380V/50Hz
Power	4 kW
System Pressure	20 MPa
Control Mode	Cable / Radio Remote
Conveying Pipe Cleaning Mode	Wash/Dry Cleaning
Boom Section Type	3-section R type
Conveying Pipe Diameter	Φ125 mm
Hose in the End	3 m
Length	6000/5000/4000 mm

Benefits for Vietnamese Contractors

This project clearly shows why concrete placing booms are becoming increasingly popular in Vietnam:

Lower labor dependency amid rising workforce costs
Higher construction efficiency for high-rise buildings
Better concrete quality control
Easy transportation and installation between projects
Long service life with low maintenance requirements

For contractors handling multi-story residential or commercial buildings, a 15m concrete placing boom is a practical and economical investment.

A Proven Concrete Placement Solution for Vietnam

The successful operation of this 15m concrete placing boom in Vietnam confirms its suitability for large high-rise construction projects. It bridges the gap between traditional pumping methods and expensive truck-mounted solutions, offering flexiblity, reliability and strong return on investment.

As Vietnam’s construction market continues to expand, concrete placing booms will play an increasingly important role in improving productivity and construction quality.
