Struggling with low-efficiency concrete pouring in high-rise projects? Tired of frequent equipment breakdowns delaying the deadlines? Or anxious about the tight budget? Static concrete pumps for sale from LUTON GROUP provide you with a variety of cost-effective, durable and practical concrete construction solutions, which can escort the supply of concrete raw materials in your construction, help you reduce costs and increase project profit margins.
Steady and Firm Installation
Precise Control Functions
Durable Structure Composition
Engine Power
52~192 kW
Capacity Range
30~90 m3/h
What Is A Static Concrete Pump
Unlike mobile concrete pumps, static concrete pumps, operating on a fixed position, are ideal for various sizes continuous construction projects requiring stable and accurate, as well as high pumping capacity onsite.
Usually, a static concrete pump is consisted of the following main components:
- Hopper – Receives fresh concrete from mixing trucks.
- Hydraulic System – Generates pressure to push concrete through pipelines ( e.g. 15-20MPa concrete pumping pressure)
- S-valve – Controls concrete flow direction and prevents backflow.
- Delivery Pipes – Modular steel or rubber pipes extend to reach up to 2000m horizontally or 500m vertically.
- Power Engine – Diesel engine or electric motor providing continuous power source.
Simply, the working process of a static concrete pump experiences steps:
- Concrete is feeding into the hopper.
- Hydraulic power converted from power sources pull and push the piston to suction and pumping concrete.
- Valve Switching
Static Concrete Pumps VS. Mobile Concrete Pumps
| Feature | Static Concrete Pump | Mobile Concrete Pump |
| Mobility | Fixed Installation | Mounted on truck or trailer chassis |
| Application Scenarios | Long-term Projects (e.g. dams, buildings, skyscrapers) | Short-term, multi-site jobs |
| Output Capacity | 60-120 m3/h | 30-90 m3/h |
| Cost Efficiency | Lower Operating Cost Over Time | Higher Rental Fees Per Project |
Top3 Scenarios Where Static Concrete Pumps Applied
- High-Rise Buildings
Static concrete pump is especially suitable for high-rise buildings because of its high pumping pressure, strong pumping capacity, efficient and consistently performance. For example, in an export case in UAE, LUTON static concrete pump HBTS90 has continuously convey concrete to 50+ floors without pressure loss.
- Tunnel & Underground Construction

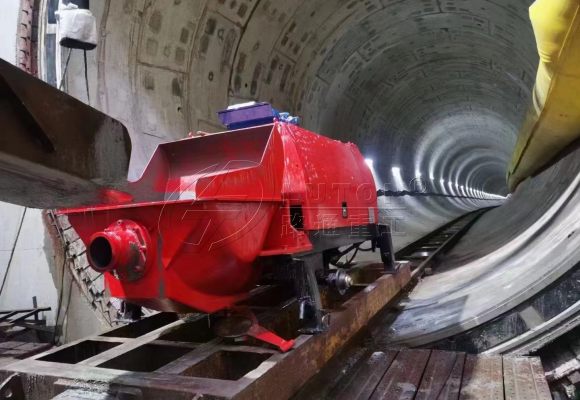

Benefited by the pipeline methods of stationary concrete pump, it can easily and safely delivers concrete through narrow, curved tunnels. For an instance, LUTON stationary concrete pump HBTS80 has succefully worked for a tunnel construction project in the Philippines.
- Infrastructure Construction Projects
Static concrete pumps are often applied in large-scale infrastructure projects. For example, it is used in hydroelectric dams, bridges and ports for 24/7 operation.
Why Engineers Prefer Static Concrete Pumps
- Zero Site Distributions
Once static concrete pump is fixed onsite, workers just need to do pipeline placement, no truck movement needed.
- Precision Control
The pressure of fixed concrete pump can be accrurately regulated depending on the requirements of actual construction sites. For high-rise pumping tasks, the pumping pressure can be regulated to be higher level while for short-distance and low-rise projects, it can be reduced for energy saving.
- Durability
High-quality steel material composited of pump structure efficiently withstands abrasive concrete mixtures.
Hot Models Of LUTON Static Concrete Pump For Sale
Small-sized Static Concrete Pump
Compact Structure, Small Volume, Light Weight, small-sized static concrete pump is easy to move and install. Usually these small models equipped with smaller transfer cylinders and hoppers, are suitable for small-scale concrete transfer tasks.
Compared with medium and large concrete pumps, small fixed concrete pumps have low throughputs and delivery pressures, but they are easier to operate and have lower maintenance costs.
In terms of the application scenarios, small static concrete pumps are suitable for construction sites with limited space or small-scale projects, such as house building, small civil constructions, road maintenance, etc. In addition, due to its flexibility and portability, it is also often used for concrete conveying in difficult-to reach areas such as water conservancy projects and subway tunnels.
HBTS30-6-52R
HBTS40-10-82R
| Models | HBTS30-6-52R | HBTS40-10-82R |
| Max. Output Capacity (m3/h) | 30 | 40 |
| Max. Pumping Pressure (MPa) | 6 | 10 |
| Distribution Valve Type | S | S |
| Concrete Cylinder (diameter × stroke) (mm) | Ф200×500 | Φ180/1300 |
| Outlet Diameter (mm) | Ф108 | Ф133 |
| Diesel Engine Model | Yuchai 52kW | Weichai 82kW |
| Conveying Distance (vertical/level) (m) | 100/300 | 120/500 |
JBS30
JBS40
| Models | JBS30-6-52R | JBS40-10-82R |
| Max. Output Capacity (m3/h) | 30 | 40 |
| Max. Pumping Pressure (MPa) | 6 | 10 |
| Distribution Valve Type | S | S |
| Concrete Cylinder (diameter × stroke) (mm) | Ф200×500 | Φ180/1000 |
| Outlet Diameter (mm) | Ф108 | Ф133 |
| Diesel Engine Model | Yuchai 52kW | Weichai 82kW |
| Conveying Distance (vertical/level) (m) | 120/300 | 120/500 |
Secondary Construction Pump
Specifically designed for secondary structural construction, secondary construction pumps have high conveying accuracy and stability. It is usually equipped with special conveying pipes and distribution valves to meet the needs of fine or complex structure construction.
Compared with small and medium-sized concrete pumps, secondary construction pumps focus more on conveying accuracy and stability rather than conveying volume. Its conveying pressure and volume are usually adjusted according to specific construction requirements.
LUTON secondary construction pumps are mainly used in cavity construction ( such as mine shafts, highway and railway tunnels, etc.), main operations, residential building constructions and various construction sites with small concrete pouring volumes or narrow spaces. In addition, they are also widely used in new rural construction, town and village construction, and other civil building projects.
| Transport Capcity | 6-8m3/h |
| Pumping Distance ( vertical ) | 10-20m |
| Delivery Distance ( horizontal ) | 40-80m |
| Allowed Particle Size | 100-300mm |
| Motor Power | 15kw |
| Pipe Diameter | 100mm/80mm |
| Overall Dimension | 1800*700*1200mm |
| Model | LT-8A Oblique Pump |
| Max. Theo.Concrete Output. | 8-10 m3/h |
| The Biggest Transportation (Vertical/Horizontal) | 30m/80-100m |
| Diameter of Delivering Pipe | 80mm |
| Max. Aggregate Diameter | 30mm |
| Rate Power of Diesel Engine | 25HP |
| Dimensions： length×width×height | 2500*1000*1500 mm |
| Total Weight | 780Kg |
| Conveying Distance ( vertical ) | 20m |
| Operation Mode | Remote Wireless or manual |
| Delivery Distance ( horizontal ) | 60m |
| Efficiency | 6-8m3/h |
| Allowed Particle Size | <20mm |
| Pipe Diameter | 80mm |
| Motor Power | 15kw |
| Overall Dimension | 1600*650*1100mm |
Medium-sized Fixed Concrete Pump
Medium-sized concrete pump has a moderate conveying capacity and pressure, which can not only meet the concrete conveying requirements of general construction projects but also maintain high working efficiency and stability.
Compared with small concrete pumps, medium-sized concrete pumps have larger conveying cylinders and hoppers, as well as higher conveying pressure and capacity. Compared with large concrete pumps, they have more moderate volume and weight, making them easier to move and install at construction sites.
This kind of static concrete pumps is suitable for various construction projects of different scales, such as high-rise buildings, bridges, subways and hydropower projects.
HBTS50-10-92R
HBTS60-13-129R
| Models | HBTS60-13-129R | HBTS50-10-92R |
| Max. Output Capacity (m3/h) | 67/45 | 50 |
| Max. Pumping Pressure (MPa) | 7/13 | 10 |
| Distribution Valve Type | S | S |
| Concrete Cylinder (diameter × stroke) (mm) | Ф200×1650 | Φ200/1200 |
| Outlet Diameter (mm) | Ф180 | Ф133 |
| Diesel Engine Model | Weichai 129kW | Yuchai 92kW |
| Conveying Distance (vertical/level) (m) | 180/1000 | 180/600 |
Large-scale Static Concrete Pump
Large-scale static concrete pump has extremely high concrete conveying capacity and pressure. It can efficiently transport a large amount of concrete to the designated location attributed for its advanced pumping ability and control system. Special design of this kind of concrete pumps for the large-scale project also ensures the safety and stability during the construction process.
Compared with small and medium-sized concrete pumps, large static concrete pumps have significant improvements in conveying capacity, conveying pressure and automation level. They are larger in size ad weight and require professional installation and debugging teams for operation.
It is mainly used in large-scale construction projects and infrastructure construction projects, such as core tube pouring for high-rise buildings, bridge pier pouring for large bridges, and dam pouring for water conservancy and hydropower projects. In addition, in large infrastructure construction projects such as railway construction, airport and port construction, large-scale concrete pumps also play an important role.
| Models | HBTS80-16-176R | HBTS90-22-199R |
| Max. Output Capacity (m3/h) | 84/45 | 90/57 |
| Max. Pumping Pressure (MPa) | 7/16 | 20/14 |
| Distribution Valve Type | S | S |
| Concrete Cylinder (diameter × stroke) (mm) | Φ200/1800 | Φ200/1600 |
| Outlet Diameter (mm) | Ф180 | Ф180 |
| Diesel Engine Model | Weichai 176kW | Weichai 199kW |
| Conveying Distance (vertical/level) (m) | 260/1200 | 300/1200 |
In conclusion, different models of fixed concrete pumps vary in terms of their characteristics, differences, and applicable scenarios. When making a choice, one should comprehensively consider the specific construction requirements and on-site conditions to ensure the smooth progress of the construction process and the stable improvement of the project quality.
Who Is LUTON GROUP
- A Chinese enterprise with over 30 years of experience in manufacturing and exporting construction machinery and equipment.
- A trustworthy Chinese enterprise with quality assurance and professional qualification certifications, winning the trust of numerous customers.
- A Chinese enterprise whose products are distributed in over 100 countries and regions and has won the trust of countless customers.
- A Chinese enterprise dedicated to the innovative design, research and manufacturing of concrete pumping equipment.
- A Chinese enterprise providing professional consultation and after-sales service 24 hours a day, 7 days a week to global customers.
Why Choose LUTON Static Concrete Pump
- Efficiency: Maximum output is 100m3/h. Vertical/horizontal transportation distance is 300m/1200m.
- Various specifications are configured to ensure high-quality working performance while meeting different budget requirements.
- Selecting well-known engine brands from both domestic and foreign countries to provide the pump with continuous and powerful power source.
- The continuously optimized hydraulic transmission system design is perfectly integrated with Kawasaki main oil pump to provide reliable and smooth intermediate power for pump operation.
- Durability: High-quality wear-resistant manganese steel alloy materials are used for wear-resistant parts such as spectacle plates and cutting rings to extend their service life, prolong the maintenance cycle of the pump machine, and reduce costs.
