With rapid urbanization and infrastructure development, the demand for high-quality concrete products in the Philippines is steady increasing. From residential housing to drainage systems and road construction, contractors are shifting toward ‘precast solutions’ to improve efficiency and consistency.

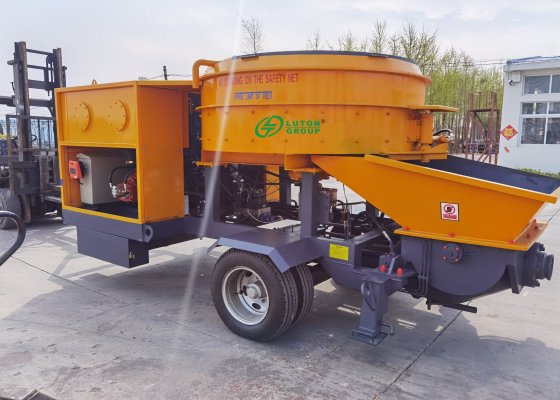

In this content, a construction materials manufacturer in the Philippines recently introduced the JW40D-1000R planetary mixer concrete pump, aiming to upgrade its production capacity and concrete quality.
Scaling Up Precast Production
The customer is a growing precast supplier involved in:
- Concrete hollow block production
- Drainage systems (culverts, U-ditch)
- Small to medium precast components
As business expanded, the company encountered several bottlenecks:
- Insufficient mixing capacity for increasing orders
- Inconsistent quality with previous equipment
- Labor-intensive workflow with separate machines
They needed a higher-capacity, integrated solution.
Why JW40D-1000R Was Selected
After evaluating different configurations, the customer chose the JW40D-1000R vertical shaft planetary mixer concrete pump, mainly for its balance between capacity and precision.
Key Specifications
- Mixer capacity: 1000 L planetary mixer
- Pumping capacity: 40m³/h
- Integrated mixing and pumping system
- Designed for dry, semi-dry and high-performance concrete
| Items | JW40D-1000R |
| Concrete Output | 50 m³/h |
| Mixer Feeding Capacity | 1600 L |
| Mixer Discharge Capacity | 1000 L |
| Concrete Pumping Pressure | 10 MPa |
| Concrete Cylinder Diameter × Stroke | Ф200mm×1000mm |
| Hopper Capacity | 800 L |
| Outlet Diameter | Ф150 mm |
| Diesel Engine Power | 129 kW Weichai Deutz or 132 kW Cummins |
| Max. Aggregate Diameter | Scree: 40-50 mm |
| Inside Diameter of Delivering Pipe | Ф125 mm |
Core Advantages of JW40D-1000R
Larger Mixing Capacity for Higher Output
Compared with 750L models, the 1000L mixer:
- Produces more concrete per batch
- Reduces cycle time
- Improves overall plant throughput
Ideal for expanding precast factories.

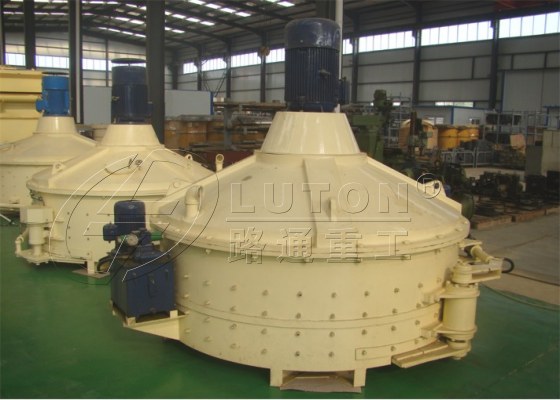

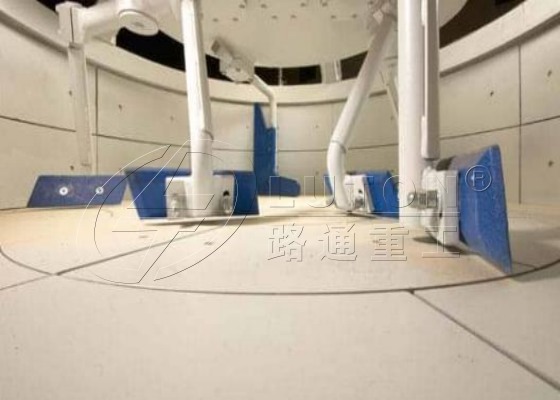

High-precision Planetary Mixing
The vertical shaft planetary system ensures:
- Uniform material distribution
- No dead mixing zones
- Excellent performance with low-slump concrete
Especially critical for:
- Hollow blocks
- Structural precast elements
Integrated Pumping System
- Direct discharge into pump system
- Continuous production flow
- Reduced material handling time
Space-saving Design
Despite higher capacity, the JW40D-1000R remains:
- Compact in layout
- Easy to install in limited factory space
- Suitable for urban production environments
On-site Performance in the Philippines
After commissioning, the machine quickly delivered tangible improvements:
Increased Production Capacity
- Higher batch output with 1000L mixer
- Faster production cycles
- Ability to meet larger orders
Improved Concrete Quality
- More consistent mix
- Stronger finished products
- Better surface finish
Streamlined Workflow
- One machine replaces multiple systems
- Reduced material transfer
- Lower labor dependency
Better Cost Efficiency
- Reduced waste
- Lower maintenance compared to multiple machines
- Improved long-term ROI
Application in Local Projects
The JW40D-1000R is now widely used in:
- Concrete hollow block production lines
- Drainage infrastructure products
- Small precast structural components
Supporting both private construction and public infrastructure projects
Why the Philippines Market Needs Planetary Mixer Pumps
The Philippines presents a unique combination of:
- Rapid infrastructure growth
- High demand for affordable housing
- Increasing adoption of precast technology
Contractors are moving toward integrated, efficient equipment to:
- Save labor costs
- Improve consistency
- Accelerate project timelines
Planetary mixer pumps fit perfectly into this trend.
Customer Feedback
The 1000L capacity makes a big difference. We can produce more in less time, and the concrete quality is much better than before. The integrated pump also simplifies our entire process.
Conclusion
The successful deployment of the JW40D-1000R planetary concrete mixer pump in the Philippines highlights how advanced equipment can support growing precast businesses.
By combining:
- Large-capacity planetary mixing
- Efficient pumping system
- Compact integrated design
It enables contractors to achieve
- Higher production capacity
- Better concrete quality
- More efficient operations
FAQs about the Planetary Mixer Concrete Pump
What is the advantage of a 1000L planetary mixer？
It increases batch output and reduces production cycles, making it ideal for medium to large precast plants.
Is JW40D-1000R suitable for hollow block production？
Yes, it is especially suitable for dry and semi-dry concrete used in block making.
Can it handle continuous production?
Yes. The integrated system supports continuous mixing and pumping workflows.
Is it suitable for small factories?
If production demand is high, even small factories can benefit from its efficiency and capacity.
