In the modern precast concrete industry, consistency and precision are everything. Whether you are producing concrete blocks, pipes, or structural components, the quality of your mix directly determines the strength and finish of your final products.
This is where the planetary concrete mixer pump stands out.
Unlike traditional mixer pumps, this advanced machine combines high-performance planetary mixing technology with efficient concrete pumping, delivering both superior material quality and streamlined workflow.

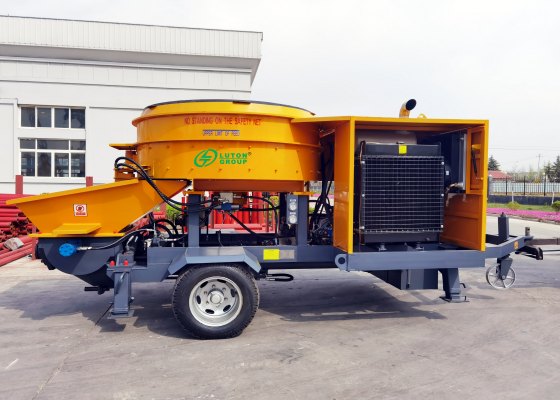

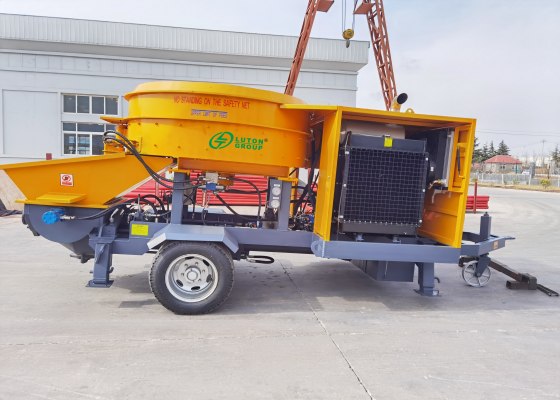

What Is A Planetary Concrete Mixer Pump
A planetary concrete mixer pump is an integrated machine that combines:
- A vertical shaft planetary concrete mixer
- A hydraulic concrete pump system
The mixer uses a unique planetary motion, where mixing arms rotate on their own axes while revolving around a central axis – ensuring full coverage of the mixing drum.
Result: No dead zones, highly uniform mixing
Once mixing is complete, the concrete is directly pumped to the construction or molding site, eliminating the need for secondary handling.
Why Planetary Mixing Is Ideal For Precast Concrete
In precast production, even slight inconsistencies can lead to:
- Surface defects
- Reduced compressive strength
- Poor dimensional accuracy
Planetary mixers solve these problems through:
360° Full Coverage Mixing
All materials are continuously redistributed, ensuring every particle is evenly blended.
High Mixing Intensity
Ideal for:
- Dry cast concrete
- Zero-slump mixes
- High-performance concrete (HPC)
Precise Control of Mix Homogeneity
Critical for:
- Color consistency
- Strength uniformity
- Surface quality
Key Advantages of Planetary Concrete Mixer Pump
Superior Concrete Quality
Compared with twin shaft mixer pumps, planetary systems deliver:
- Better dispersion of cement
- Reduced segregation
- More stable slump
Integrated Mixing and Pumping
- No need for separate mixer + pump
- Reduced labor cost
- Faster production cycle
Ideal for Complex Mix Designs
Handles:
- Lightweight concrete
- Colored concree
- Fiber-reinforced concrete
Compact and Efficient Layout
Perfect for:
- Small precast factories
- Limited construction sites
- Mobile production setups
Reduced Material Waste
Accurate mixing minimizes rejected products, improving overall ROI.
Typical Applications in the Precast Industry
The planetary concrete mixer pump is widely used in:
Concrete Block Production
- Hollow blocks
- Solid bricks
- Interlocking pavers
- Especially suitable for machines like QT4-24, QT6-15 block making lines
Precast Structural Components
- Wall panels
- Beams and columns
- Bridge segments
Pipe and Manhole Manufacturing
- Concrete pipes
- Inspection chambers
- Drainage systems
Decorative and Colored Concrete
- Architectural panels
- Landscape products
- Colored paving stones
Planetary Mixer Pump vs. Twin Shaft Mixer Pump
| Feature | Planetary Mixer Pump | Twin Shaft Mixer Pump |
| Mixing Uniformity | ⭐⭐⭐⭐⭐ | ⭐⭐⭐⭐ |
| Suitable Materials | Complex / Dry Mix | General Concrete |
| Equipment Cost | Higher | Lower |
| Maintenance | Moderate | Easier |
| Application Focus | Precast / High-end | General Construction |
If your priority is quality and precision, planetary is the better choice.
If your focus is cost and general use, twin shaft may suffice.
How to Choose the Right Model
When selecting a planetary concrete mixer pump, consider:
Production Capacity
- Small precast plant: 20-30 m³/h
- Medium plant: 30-50 m³/h
Mixer Volume
Match with your production cycle:
- 500L – 1000L for small lines
- 1000L+ for larger operations
Pumping Distance
- Horizontal: up to 200-500 meters
- Vertical: 50 -120 meters
Material Type
Ensure compatibility with:
- Dry cast concrete
- Fiber mixes
- Special aggregates
Why Precast Factories Prefer Planetary Systems
Precast manufacturers are shifting toward planetary mixer pumps because they deliver:
- Consistent product quality
- Lower rejection rates
- Better surface finish
- Higher long-term profitability
In competitive markets, quality consistency = brand reputation
Maintenance Tips for Long-Term Performance
To maximize lifespan:
- Regularly check mixing blades and liners
- Lubricate planetary gearbox
- Clean the mixing drum after each batch
- Inspect hydraulic system of pump
Proper maintenance ensures stable output and reduces downtime.
The planetary concrete mixer pump is not just another piece of equipment – it is a precision-driven solution for modern precast production.
By combining advanced mixing technology with efficient pumping capability, it helps manufacturers achieve:
- Higher quality standards
- Improved efficiency
- Stronger market competitiveness
FAQ
What is the difference between planetary and twin shaft mixers?
Planetary mixers provide more uniform mixing with no dead zones, making them ideal for precast and high-performance concrete.
Is a planetary mixer pump suitable for block making machines?
Yes, it is highly suitable, especially for dry and zero-slump concrete used in block production.
What types of concrete can it handle?
It can handle:
- Dry cast concrete
- Lightweight concrete
- Fiber-reinforced concrete
- Colored concrete
Is the investment worth it?
Although the initial cost is higher, the improved product quality and reduced waste lead to better long-term returns.
