Construction sector of Tanzania is booming – from high-rise buildings in Dar es Salaam to road and bridges in Tabora and Mbeya. But one problem keeps coming back: unstable grid power and remote job sites with no electricity at all.
A diesel concrete pump is not just an alternative. It is often the only way to keep concrete flowing.
Free From Unstable Electric Supply
Flexible & Portable
Efficient & Practicle
Diesel Power
52kW – 199kW
Output Range
30 – 90 m³/h
Why a Diesel Concrete Pump Beats Electric Pumps in Tanzania
Many contractors ask:” Why not an electric pump + generator set?” Here is what actually happens on the ground:
- No grid, no delay – Voltage fluctuations and unscheduled outages are common in many regions. A diesel pump runs independently. No waiting for TANESCO to restore power.
- True mobility – Remote sites (e.g., rural health pump moves with your team. An electric pump requires a heavy generator plus long, expensive cables.
- Real total cost – A diesel pump has a higher initial price than an electric unit. But when you add a generator of similar power, voltage regulators, and diesel for that generator, the cost gap almost disappears. With a diesel pump you run only one engine, maintain one set of filters, and move one piece of equipment.
In Dodoma, Tanzania, A contractor saved 28% on fuel and rental costs by switching from “electric pump + generator” to a dedicated diesel concrete pump on a 6-story hotel project.
Key Specs That Match Tanzanian Job Conditions
Choose a pump that fits local aggregates, climates, and typical distances. Generic ‘max capacity’ numbers are useless. Here is what matters.
| Parameter | Recommended range for Tanzania | Why |
| Max horizontal distance | ≥300m (with 125mm pipe) | Road and bridge sites often pour 200-300m from the mixer. |
| Max vertical head | ≥120m | Dar es Salaam high-rises (20+ floors) and hillside projects in Arusha. |
| Max aggregate size | 40mm (or 30mm for fine aggregate mixes) | Local crushed stone is irregular. Small S-valves causes blockages. |
| Hydraulic oil temp. range | -10℃ ~ +45℃ ambient | Many sites hit 40℃+ in dry season. Overheating kills productivity. |
| Fuel tank capacity | ≥180L | Full day of continuous pumping without refueling. |
| Air filter rating | Double element, ＞99.9% efficiency | Dusty roads (especially in Shinyanga and Simiyu) destory standard filters in weeks. |
Our S-valve with chromium carbide coating has been field-tested in Morogoro with local aggregates (15mm-38mm). Wear life exceeded 12000m³ of pumped concrete – twice what standard valved offer in the same abrasive mix.
Diesel Concrete Pump Models for Tanzania
Below ar three actual models we currently supply to Tanzania contractors. Each is field-tested on local aggregates, diesel quality, and climate.
HBTS40 Compact Diesel Pump Model for Small Sites
Best for:
- Single residential slab pours
- Small rural road culberts
- Sites where access road is narrow (＜3m width)
| Model | HBTS40-10-82R |
| Theoretical Output | 40m³/h |
| Max Concrete Pressure | 10 MPa |
| Delivery Distance | 500m horizontal / 120m vertical |
| Diesel engine power | 82kW (Yuchai/Weichai – common in Tanzania) |
| Max aggregate size | 40mm |
HBTS60 Popular Model for Medium-large Projects
Best for:
- Multi-story buildings (up to 20 floors) in Dar, Mwanza, Arusha
- Road projects (Ruaruke, Morogoro highway)
- Government district projects in Dodoma
| Theoretical Output | 60m³/h |
| Max concrete pressure | 13 MPa |
| Delivery Distance | horizontal 1000m/ vertical 180m |
| Diesel engine power | 129 kW (water-cooled, electric start) |
| S-valve | Chromium carbide coated |
| Cooling system | Oversized radiator + hydraulic oil cooler for 40-45℃ ambient |
HBTS80 for High-rise or Long-distance Concrete Pumping
Best for:
- High-rise builgings (25+ floors)
- Long tunnel or dam pours
- Heavy infrastructure (bridges, ports)
| Theoretical Output | 80m³/h |
| Max Concrete Pressure | 16MPa |
| Delivery Distance | horizontal 1200m/vertical 260m |
| Diesel engine power | 176 kW (turbo, low-noise exhaust) |
| Aggregate size | 40mm (ideal for foundation and bridge concrete) |
| Hydraulic system | Closed loop, Rexroth-type pump |

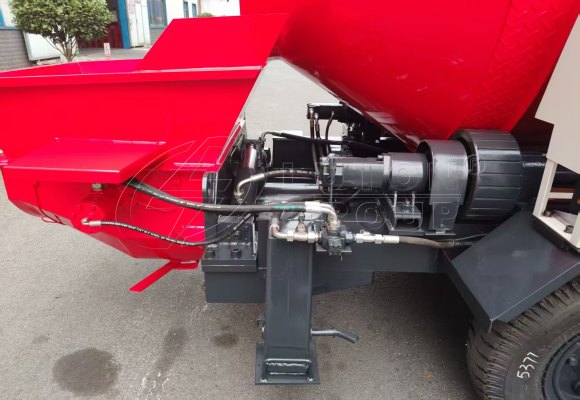

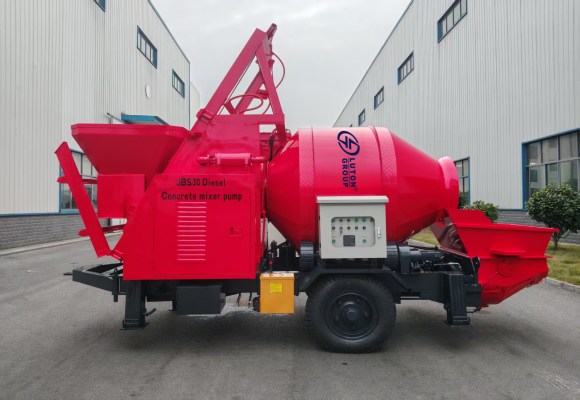

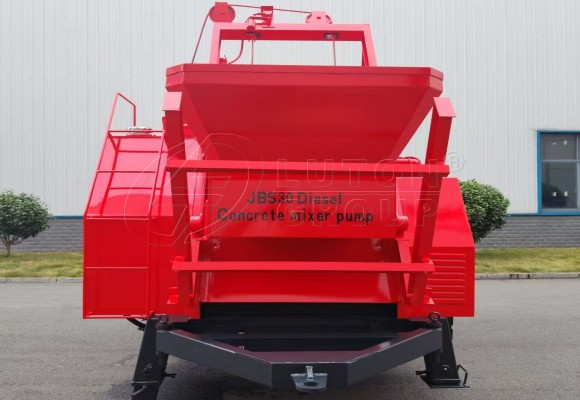

JBS30 Diesel Concrete Mixer Pump for 2-in-1 Solution
Best for:
- Remote village construction with no ready-mix supply
- Houses and commercial buildings up to 4-6 floors
- Small bridges and culverts
- Sites where transporting ready-mix concrete is costly or logistically impossible
| Theoretical Output | 30m³/h |
| Max Concrete Pressure | 6 MPa |
| Delivery Distance | horizontal 300m/vertical 120m |
| Diesel engine power | 52 kW Yuchai/Weichai |
| Aggregate size | 20mm~40mm |
| Hydraulic system | Closed loop, Rexroth-type pump |
Quick Selection Table
| Model | Output | Pressure | Max Vertical | Max horizontal | Typical project size |
| HBTS40-10-82R | 40m³/h | 10MPa | 120 m | 500 m | Small house, small slab |
| HBTS60-13-129R | 60m³/h | 13MPa | 180 m | 1000 m | Mid-high rise, roads |
| HBTS80-16-176R | 80m³/h | 16MPa | 260 m | 1200 m | High-rise, bridges |
| JBS30 -6 – 52R | 30m³/h | 6MPa | 120 m | 300 m | Remote sites, residential buildings |
Scenarios of LUTON Diesel Concrete Pump to Tanzania
High-density area in Dar es Salaam
Model used: HBTS40-10-82R
Challenge: Narrow streets, noise restrictions, no space for a generator set.
Solution: Compact diesel pump with low-noise exhaust and single-axle chassis. Fits on a 6-meter truck.
Result: poured 45m³/hour for a basement slab. Neighbors did not complain. No grid connection needed.
Rural road-kigoma to Dodoma
Challenge – mixing plant is 2.8km away from the pour zone. Power is unavailable for 10km around.
Solution – diesel pump with long-distance concrete conveying mode ( reduced piston speed, increased accumulator pressure).
Result – pumped C25 concrete 320m horizontally (125mm pipe). No pipeline blockage.
Customer quote (Kigoma project manager):”We used to rent two generators-one for the pump, one for lights. Now the diesel pump alone does the job. One less engine to break down.”
Operation & Maintenance
You won’t always have a German or Chinese technician on site. Your team learns fast if the machine is designed for it.

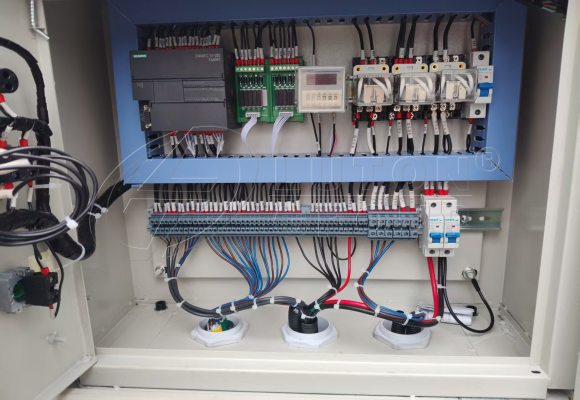

Simplified Controls
Control panel uses icons + English labels. We can add Swahili stickers on request.
Three main buttons – Pump on/off, Speed up/down, Emergency stop. No hidden menus.
Quick Wear Parts Replacement
| Part | Typical life (with local concrete) | Replacement time |
| Cutting ring | 8000 – 10000 m³ | 20 minutes |
| Wear plate (eye) | 8000 – 10000 m³ | 20 minutes |
| Piston cups | 6000 – 8000 m³ | 25 minutes (both sides) |
All wear parts can be changed with basic tools (wrench, hammer, punch).
Illustrated quick-guide is laminated and attached inside the control panel door.
Maintenance Schedule for Tanzanian Conditions
| Engine oil & filter | every 200 hours (shorter than standard 250h due to local diesel sulfur content – we tested it). |
| Hydraulic oil | first 500h, then every 1000h. |
| Air filter | clean daily (dusty sites); replace every 100h. |
We also provide a one-page ‘local mechanic card’ with torque values and common fault code (translated into Swahili example phrases).
We Keep You Pumping, Not Waiting
A breakdown is bad. Waiting weeks for parts is worse. We designed our Tanzania support to match real logistics.
Spare Parts in Dar es Salaam & Mombasa
- Stocked items: delivery cylinders, S-valve assembly, piston cups, cutting rings, wear plates, hydraulic hoses, and control board.
- Delivery to major towns (Arusha, Mwanza, Mbeya, Tanga, Zanzibar) within 3 working days via Express or local couriers.
Remote Technical Support
Every machine comes with a telephone number on the body. Contact us via the phone number, and our technician replies within 4 working hours ( Tanzania time).
Pre-recorded video library: Common fixes ( bleeding air, changing piston cups, cleaning the hopper grid) – accessible by our technical team.
On-site Training for Fleet Buyers
Purchases ≥5 units → a field engineer stays with your for 10-14 days at your main site.
He trains your local mechanics to perform Level 1, 2 and 3 maintenance. He also certifies two of your staff as ‘pump champions’.
Which Diesel Pump for Your Project
Answer three questions, we will recommend a model within 24 hours (free):
- Average pouring volume per day – 50m³, 100m³ or 200m³+？
- Longest pipeline distance – Horizontal _m / Vertical _m.
- Do you need truck-mounted or towable? (truck-mounted for frequent moves, towable for semi-stationary sites)
Send this info via the form below. We will replay with:
- Recommended model and key specs
- Estimated fuel consumption per 100m³(based on your distance)
- Ex-works or CIF Dar es Salaam price
- Photos of the actual machine ready for shipping
Diesel Concrete Pump for Your Projects
A diesel concrete pump eliminates power uncertainty. And now you have seen the real models we deliver to Tanzania – with real specs, real spare parts support, and a maintenance plan that works for your local team.
Still unsure? Request a free site evaluation (WhatsApp video call). We will watch your site conditions, measure access, and show you the payback period in months.
