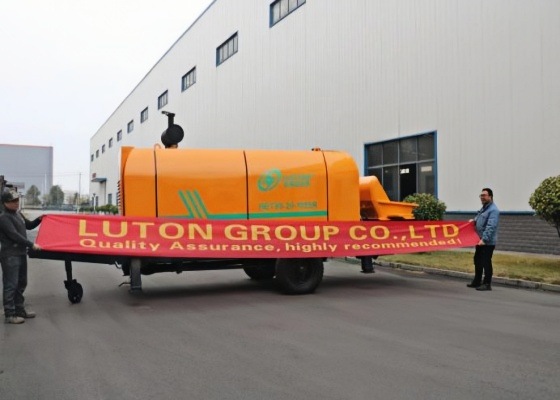

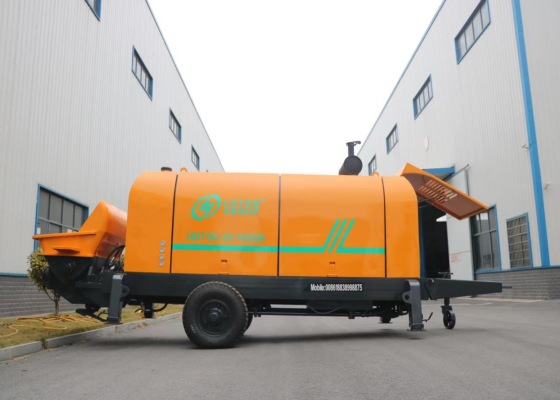

HBTS90 concrete trailer pump, as one of the largest-sized models in the concrete pumping equipment products of LUTON GROUP, possesses powerful pumping capacity, reliable technical performance and flexible adaptability. It is widely used in high-rise buildings, bridges and tunnels, water conservancy and power projects, as well as various complex terrain concrete construction projects all over the world.
Powerful Pumping Capacity
Reliable Technical Performance
Flexible Adaptability
Easy Operation
| Items | Units | HBTS90-20-199R |
| Max.theo.concrete output (Low pressure/High pressure) | m3/h | 90/57 |
| Max.concrete pumping pressure (Low pressure/High pressure) | MPa | 20/14 |

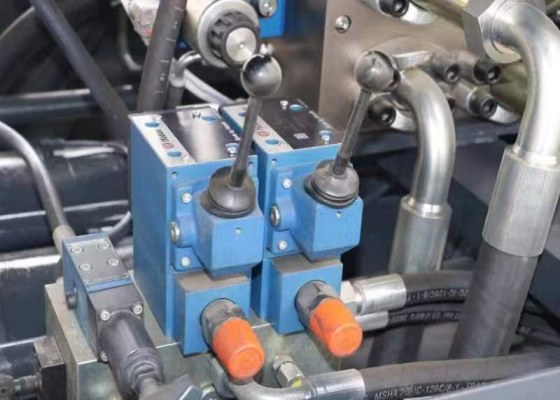

| Distribution valve type | S | |
| Concrete cylinder diameter×stroke | mm | Ф200*1600 |
| Outlet diameter | mm | Ф180 |
| Diesel engine model | Weichai | |
| Diesel engine power | kW | 199 |
| The biggest transportation (vertically/Level) | m | 300/1200 |
| Max. aggregate diameter | mm | Scree:40 |
| Inside diameter of delivering pipe | mm | Ф125 |
Performance And Parameter Of HBTS90 Concrete Pump
The HBTS90 concrete trailer pump features the top configuration of LUTON pumping equipment:
Hydraulic equipment, sealing system, electrical control system components, sensing system, etc.
All the main components are made from internationally leading brand products.

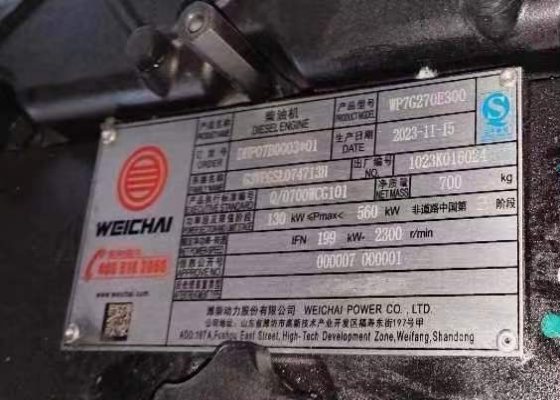

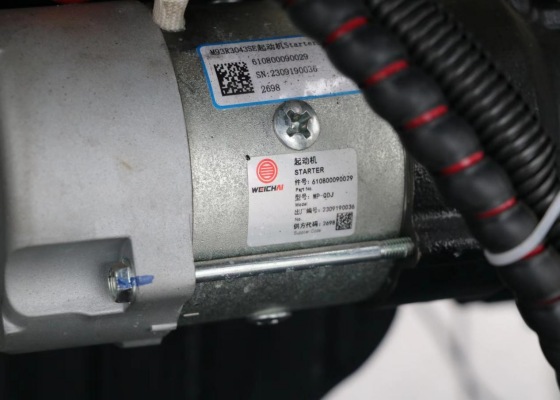

The LUTON HBTS90 concrete pump adopts the top brand of China’s diesel engine, the Weichai 199kW six-cylinder engine, with a rated speed of 1900 rpm. It has powerful, stable and efficient power.
Each LUTON HBTS90 is customized to meet your specific requirements.
The maximum concrete output can reach 94m3/h, and the minimum is 56m3/h.

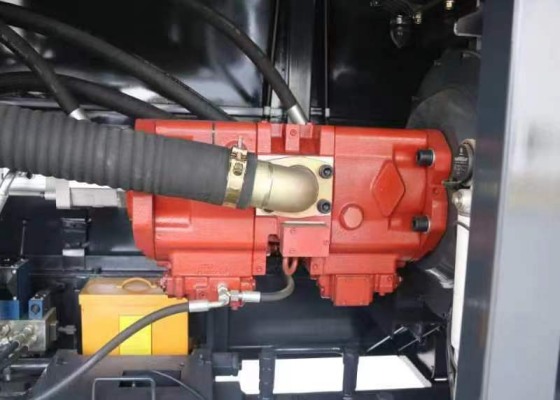

The concrete cylinder with a diameter of 200mm and length of 1800mm, combined with the 32MPa hydraulic power system from Kawasaki, is composed of two main oil pumps with a displacement of 140L per revolution.
It can pump concrete to the farthest 800 meters and the highest 180m of the construction site. The sealing system from Parker in the United States provides perfect sealing guarantee for this series of efficient and stable pumping actions.
Export Case Of LUTON HBTS90 Concrete Pump
In March 2024, LUTON GROUP sold HBTS90 concrete trailer pumps to Armenia. These pumps successfully provided strong and efficient concrete supply support for a rural mountain road construction project in the local area, enabling the completion data of the entire construction project to be advanced by nearly one month and reducing the labor cost by 60%.
Why Choose LUTON GROUP
- 30+ years experience of concrete pump design and production
- Exported to 100+ countries around the world
- 10 oversea branches in the world, supply 7 days*24 hours service
- Customization for your special concrete supply requirements
- Products and spare parts are in stock, ensuring delivery at any time
- CE/ISO/BV/SGS
