Concrete mixer pump and wheel loader to Rwanda is a proven construction solution for fast, cost-effective projects.
In recent years, Rwanda has been steady growth in housing projects, commercial buildings, schools, and infrastructure upgrades. Many of these projects share common challenges:
- Construction sites are scattered and relatively small
- Skilled labor is becoming more expensive and harder to manage
- Concrete needs to be produced and placed quickly and continuously
- Equipment must be easy to transport, install, and operate
For one local contractor in Rwanda, traditional methods – manual feeding, separate mixers, and slow concrete placement – were no longer efficient enough. They needed a compact but highly productive concrete solution.

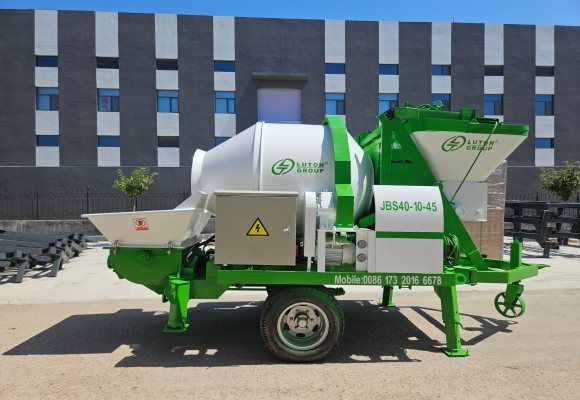

That’s when they chose a JBS40 concrete mixer pump combined with a wheel loader 932.
| Model | JBS40-10-84R |
| Max. theo. concrete output | 40 m³/h |
| Mixer rated feed capacity | 0.56 m³ |
| Mixer rated discharge capacity | 0.45 m³ |
| Max.concrete pumping pressure | 10 MPa |
| Distribution valve type | S valve |
| Concrete cylinder diameter×stroke | Φ180/1000 mm |
| Diesel engine model | Weichai 84kW |
| Hydraulic circuit type | open circuit |
| Max. Conveying Distance | 120m vertical 500m horizontal |

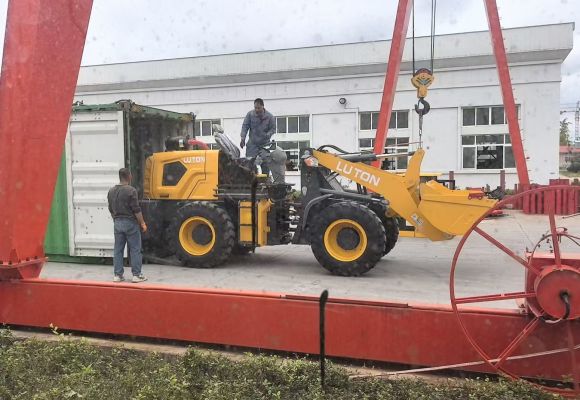

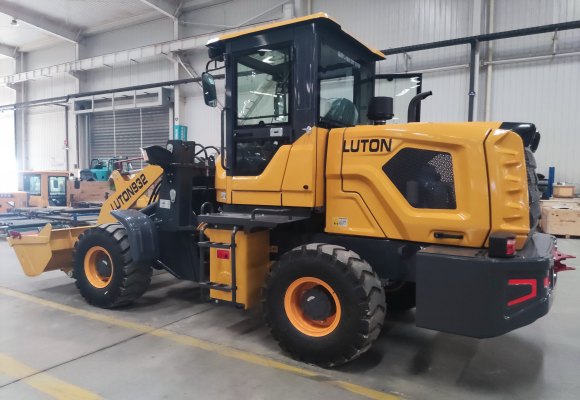

| Model | LUTON932 |
| Bucket capacity | 1 m³ |
| Engine type | YUNNEI 55kW |
| Overall Dimension (L*W*H) | 5500×1800×2200 mm |
| Wheelbase | 2200 mm |
| Wheel distance | 1490 mm |
| Min. ground clearance | 260 mm |
| Total weight | 3200 kg |
| Max. unloading height | 3200 mm |
| Bucket width | 1800 mm |
| Max. lift height | 4400 mm |
Residential & Commercial Building Project In Kigali
Construction Type:
- 3-5 story residential and mixed-use buildings
- Slabs, columns, beams, staircases, and foundation works.
Jobsite Conditions
- Limited space for large batching plants
- Need for frequent relocation between sites
- Requirement for stable concrete output and reliable pumping distance
This is a typical and repeatable application scenario across Rwanda – and exactly where this equipment combination shines.
Why JBS40 Concrete Mixer Pump + Wheel Loader Works So Well
Efficient Concrete Production & Pumping in One Machine

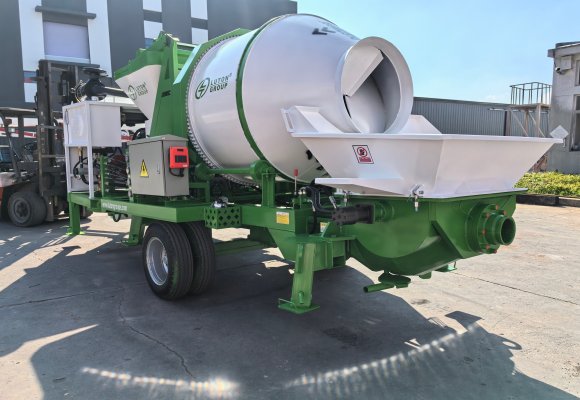

The JBS40 concrete mixer pump integrates concrete mixing and pumping into one compact unit.
It provides obvious advantages onsite:
- Continuous mixing ensures consistent concrete quality
- Pumping directly after mixing saves working time
- Ideal for medium-rise buildings and small infrastructure works
With a pumping capacity of 40 m³/h, the JBS40 easily meets daily concrete demands without over-investment.
The Perfect Feeding Partner
Instead of manual loading or excavator feeding, the customer selected a wheel loader to work alongside the mixer pump.
Benefits of this combination:
- Fast and uniform feeding of sand, gravel, and aggregates
- Reduced labor dependency
- Better control of material supply rhythm
- Cleaner and more organized jobsite
One operator handles the loader, one operator manages the mixer pump – maximum efficiency with minimal manpower.
Time-saving, Labor-saving, Cost-saving
Compared with traditional construction methods, this solution helped the contractor achieve:
- Faster pouring cycles
- Fewer workers required
- Lower daily operating costs
- Simpler maintenance and operation
For contractors in Rwanda, where project margins matter, this directly translates into higher profitability per project.

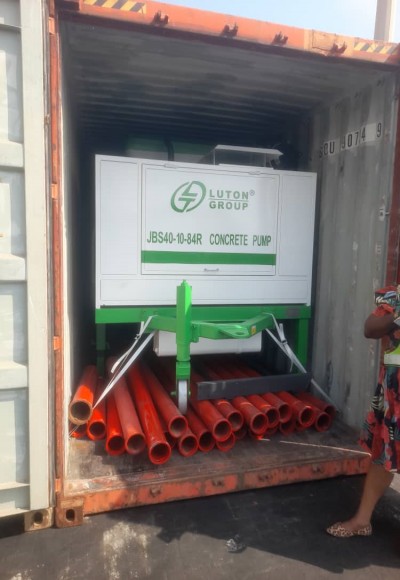

Transportation Advantage – Two Machines, One 40HQ Container
One of the most practical highlights of this project is logistics efficiency.
- 1 × JBS40 concrete mixer pump
- 1 × wheel loader LUTON932
Both units were perfectly loaded into one 40HQ container.
Why this Matters:
- Lower sea freight cost
- Easier customs clearance
- Reduced risk during transportation
- Faster delivery timeline
For overseas buyers, especially in Africa, container optimization is real money saved – and this solution delivers exactly that.
On-site Performance & Customer Feedback
After installation and commisioning, the equipment started operation immediately. Concrete output remained stable and continuous. Pumping performance met all structural pouring needs. The contractor completed multiple projects with the same setup:
This combination is easy to move, easy to operate, and very efficient. It perfectly fits our project scale in Rwanda.
A Replicable Solution for the African Market
This case proves that you don’t need ad large batching plant for medium projects. A concrete mixer pump + wheel loader is often the smarter choice.
The JBS40 model is espeically suitable for african jobsite conditions. Whether for housing, schools, warehouse, or commercial buildings, this solution offers a balanced mix of productivity, mobility and cost control.
Smart Equipment, Smarter Investment
The JBS40 concrete mixer pump and wheel loader to Rwanda is more than a shipment – it’s a tested construction solution.
By combining:
- High-efficiency concrete production
- Reliable pumping performance
- Flexible material handling
- Optimized transpotation in one 40HQ container
Contractors can complete projects faster, easier, and more profitably.
If you’re planning similar construction projects and looking for a proven setup, this combination is well worth considering.
